Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ > Class Template Reference

Detailed Description

template<int SizeAtCompileTime, int MaxSizeAtCompileTime, typename StorageIndex_>
class Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >

Permutation matrix.

Template Parameters

SizeAtCompileTime	the number of rows/cols, or Dynamic
MaxSizeAtCompileTime	the maximum number of rows/cols, or Dynamic. This optional parameter defaults to SizeAtCompileTime. Most of the time, you should not have to specify it.
StorageIndex_	the integer type of the indices

This class represents a permutation matrix, internally stored as a vector of integers.

See also

class PermutationBase, class PermutationWrapper, class DiagonalMatrix

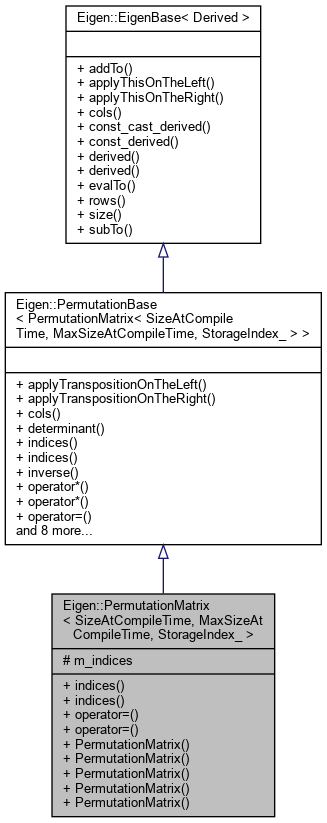

Inheritance diagram for Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >:

Public Member Functions
IndicesType &	indices ()
const IndicesType &	indices () const
template<typename Other >
PermutationMatrix &	operator= (const PermutationBase< Other > &other)
template<typename Other >
PermutationMatrix &	operator= (const TranspositionsBase< Other > &tr)
template<typename Other >
	PermutationMatrix (const MatrixBase< Other > &indices)
template<typename OtherDerived >
	PermutationMatrix (const PermutationBase< OtherDerived > &other)
template<typename Other >
	PermutationMatrix (const TranspositionsBase< Other > &tr)
	PermutationMatrix (Index size)
Public Member Functions inherited from Eigen::PermutationBase< PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ > >
PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ > &	applyTranspositionOnTheLeft (Index i, Index j)
PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ > &	applyTranspositionOnTheRight (Index i, Index j)
Index	cols () const
Index	determinant () const
IndicesType &	indices ()
const IndicesType &	indices () const
InverseReturnType	inverse () const
PlainPermutationType	operator* (const InverseImpl< Other, PermutationStorage > &other) const
PlainPermutationType	operator* (const PermutationBase< Other > &other) const
PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ > &	operator= (const PermutationBase< OtherDerived > &other)
PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ > &	operator= (const TranspositionsBase< OtherDerived > &tr)
void	resize (Index newSize)
Index	rows () const
void	setIdentity ()
void	setIdentity (Index newSize)
Index	size () const
DenseMatrixType	toDenseMatrix () const
InverseReturnType	transpose () const
Public Member Functions inherited from Eigen::EigenBase< Derived >
EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT
Derived &	derived ()
const Derived &	derived () const
EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT
EIGEN_CONSTEXPR Index	size () const EIGEN_NOEXCEPT

Additional Inherited Members
Public Types inherited from Eigen::EigenBase< Derived >
typedef Eigen::Index	Index
	The interface type of indices. More...

Constructor & Destructor Documentation

PermutationMatrix() [1/4]

template<int SizeAtCompileTime, int MaxSizeAtCompileTime, typename StorageIndex_ >

Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >::PermutationMatrix ( Index  size )

inlineexplicit

Constructs an uninitialized permutation matrix of given size.

PermutationMatrix() [2/4]

template<int SizeAtCompileTime, int MaxSizeAtCompileTime, typename StorageIndex_ >

template<typename OtherDerived >

Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >::PermutationMatrix ( const PermutationBase< OtherDerived > &  other )

inline

Copy constructor.

PermutationMatrix() [3/4]

template<int SizeAtCompileTime, int MaxSizeAtCompileTime, typename StorageIndex_ >

template<typename Other >

Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >::PermutationMatrix ( const MatrixBase< Other > &  indices )

inlineexplicit

Generic constructor from expression of the indices. The indices array has the meaning that the permutations sends each integer i to indices[i].

Warning

It is your responsibility to check that the indices array that you passes actually describes a permutation, i.e., each value between 0 and n-1 occurs exactly once, where n is the array's size.

PermutationMatrix() [4/4]

template<int SizeAtCompileTime, int MaxSizeAtCompileTime, typename StorageIndex_ >

template<typename Other >

Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >::PermutationMatrix ( const TranspositionsBase< Other > &  tr )

inlineexplicit

Convert the Transpositions tr to a permutation matrix

Member Function Documentation

indices() [1/2]

template<int SizeAtCompileTime, int MaxSizeAtCompileTime, typename StorageIndex_ >

IndicesType& Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >::indices ( )

inline

Returns

a reference to the stored array representing the permutation.

indices() [2/2]

template<int SizeAtCompileTime, int MaxSizeAtCompileTime, typename StorageIndex_ >

const IndicesType& Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >::indices ( ) const

inline

const version of indices().

operator=() [1/2]

template<int SizeAtCompileTime, int MaxSizeAtCompileTime, typename StorageIndex_ >

template<typename Other >

PermutationMatrix& Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >::operator= ( const PermutationBase< Other > &  other )

inline

Copies the other permutation into *this

operator=() [2/2]

template<int SizeAtCompileTime, int MaxSizeAtCompileTime, typename StorageIndex_ >

template<typename Other >

PermutationMatrix& Eigen::PermutationMatrix< SizeAtCompileTime, MaxSizeAtCompileTime, StorageIndex_ >::operator= ( const TranspositionsBase< Other > &  tr )

inline

Assignment from the Transpositions tr

---

The documentation for this class was generated from the following file:

• PermutationMatrix.h
